2004 - Hwacheon HI-Tech 200A CNC Lathe

All specifications are approximations and are subject to verification.

Capacity:

• Max Turning Diameter: 13.81″
• Max Turning Length: 15.75″
• Max Bar Capacity: 2.9″
• Distance Between Centers: 20.5″
• Swing Over Bed: 18.7″


Travel:

• X Axis Travel: 7.69″
• Z Axis Travel: 16.90″
• Rapid Traverse X Axis: 1181 IPM
• Rapid Traverse Z Axis: 1181 IPM


Spindle:

• Spindle Nose: A2-6
• Spindle Bore: 2.95″
• Spindle Speed: 50 – 5000 RPM
• Spindle Motor: 15/20 HP

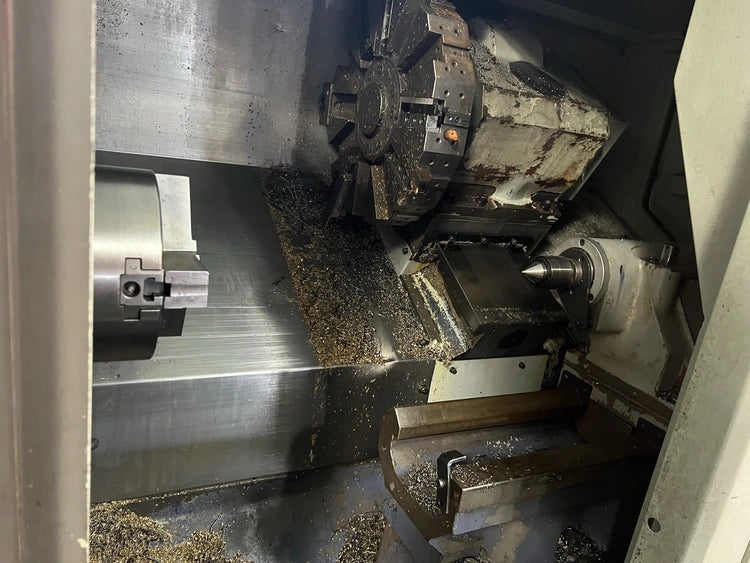

Turret:

• Turret Capacity: 12 Live Stations
• Turret Index Time: 0.20 Second


Tailstock:

• Tailstock Taper: MT-3
• Tailstock Quill Dia.: 2.362″
• Tailstock Quill Travel: 4.72″
• Tailstock Body Travel: 13.7″


General:

• Power: 220v / 3-Phase
• Overall Dimensions: 90″ x 70″ x 72″ High
• Weight: 8500 lbs
