Tartan American Machinery

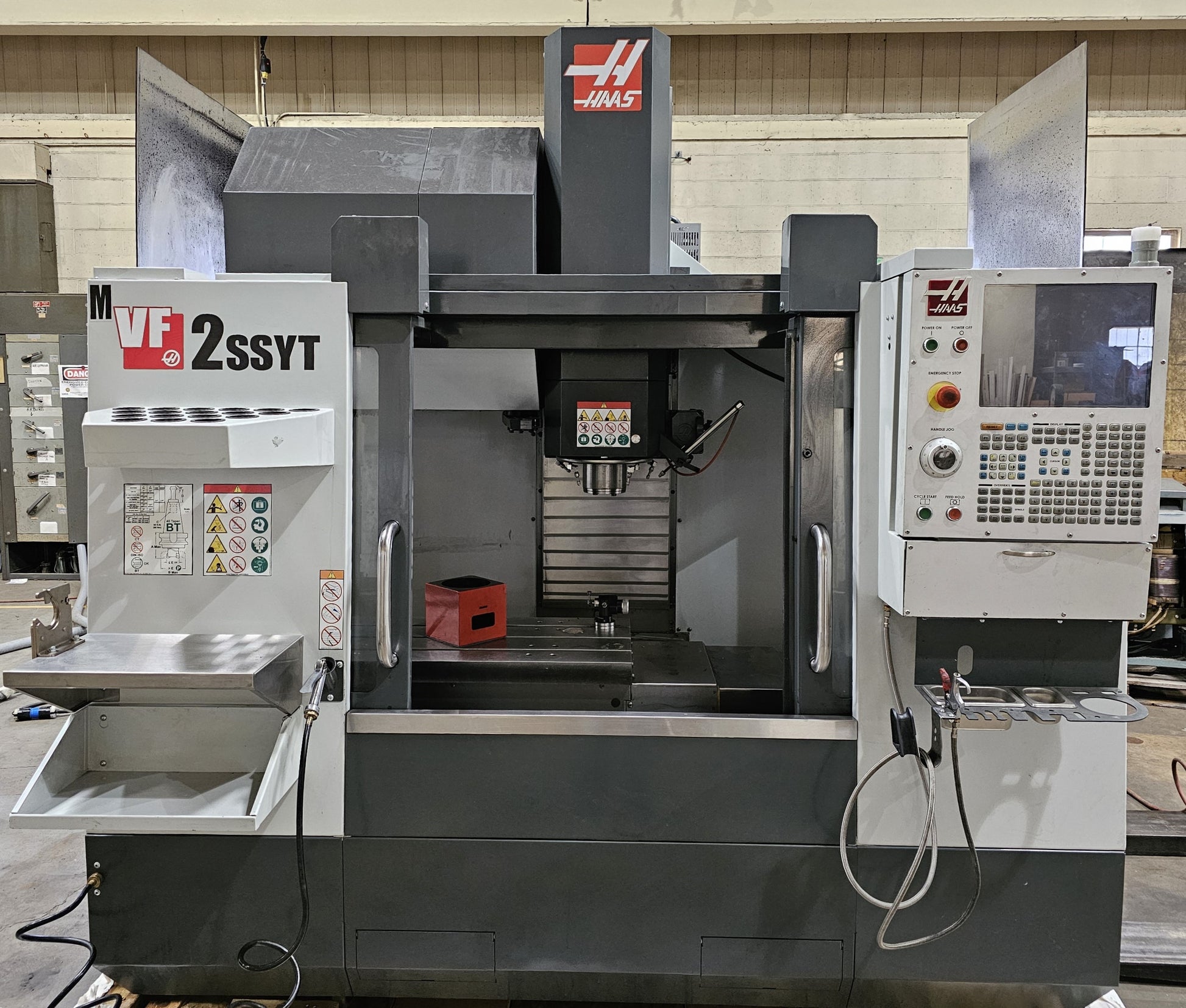

Haas VF2 SSYT - 2019 (15,000 RPM)

Haas VF2 SSYT - 2019 (15,000 RPM)

Regular price $49,500.00 USD
Regular price $54,500.00 USD Sale price $49,500.00 USD
Sale Sold out

Hours

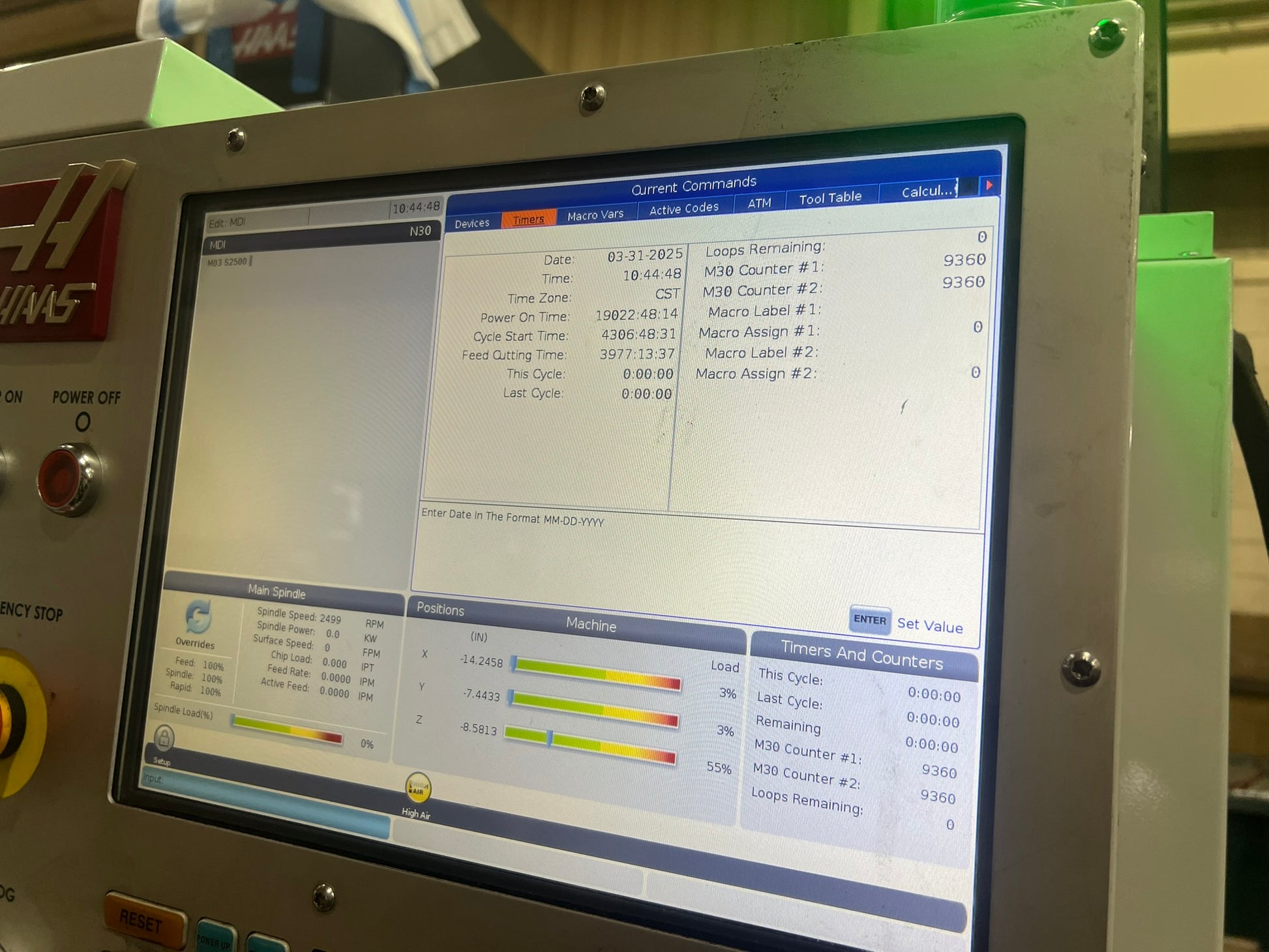

Cutting Hours --- 3,977 Hours

Travels
X Axis --- 30.00 in (762 mm)
Y Axis --- 20.00 in (508 mm)
Z Axis --- 20.00 in (508 mm)
Spindle Nose to Table (~ max) --- 24.0 in (610 mm)
Spindle Nose to Table (~ min) --- 4.0 in (102 mm)


Spindle
Max Rating --- 30.0 hp (22.4 kW)
Max Speed --- 15000 rpm
Max Torque --- 90.0 ft-lbf @ 2000 rpm (122.0 Nm @ 2000 rpm)
Drive System --- Inline Direct-Drive (Inline Direct-Drive)
Taper --- CT40 | BT40 | HSK-A63 (CT40 | BT40 | HSK-A63)
Bearing Lubrication --- Air / Oil Injection (Air / Oil Injection)
Cooling --- Liquid Cooled (Liquid Cooled)


Table
Length --- 36.0 in (914 mm)
Width --- 18.0 in (457 mm)
T-Slot Width --- 0.626 in to 0.630 in (15.90 mm to 16.00 mm)
T-Slot Center Distance --- 4.92 in (125 mm)
Number of Std T-Slots --- 3 (3)
Max Weight on Table (evenly distributed) --- 1500 lb (680 kg)


Feedrates
Max Cutting --- 833 ipm (21.2 m/min)
Rapids on X --- 1400 ipm (35.6 m/min)
Rapids on Y --- 1400 ipm (35.6 m/min)
Rapids on Z --- 1400 ipm (35.6 m/min)

Axis Motors
Max Thrust X --- 1995 lbf (8874 N)
Max Thrust Y --- 1995 lbf (8874 N)
Max Thrust Z --- 3085 lbf (13723 N)

Tool Changer
Type --- SMTC (SMTC)
Capacity --- 30+1 (30+1)
Max Tool Diameter (full) --- 2.5 in (64 mm)
Max Tool Diameter (adjacent empty) --- 5.4 in (127 mm)
Max Tool Length (from gage line) --- 11 in (279 mm)
Max Tool Weight --- 12.0 lb (5.0 kg)
Tool-to-Tool (avg) --- 1.80 s (1.80 s)
Chip-to-Chip (avg) --- 2.40 s (2.40 s)


General
Coolant Capacity --- 55 gal (208 L)


Air Requirements
Air Required† --- 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose --- 3/8 in (3/8 in)
Coupler (Air) --- 3/8 in (3/8 in)
Air Pressure Min --- 80 psi (5.5 bar)


Electrical Specification
Drive System --- Inline Direct-Drive (Inline Direct-Drive)
Spindle Power --- 30.0 hp (22.4 kW)
Input AC Voltage (3 Phase) - Low --- 220 VAC (220 VAC)
Full Load Amps (3 Phase) - Low --- 70 A (70 A)
Input AC Voltage (3 Phase) - High* --- 440 VAC (440 VAC)
Full Load Amps (3 Phase) - High* --- 35 A (35 A)

Dimensions - Shipping

Weight --- 7800 lb (3539.0 kg)
