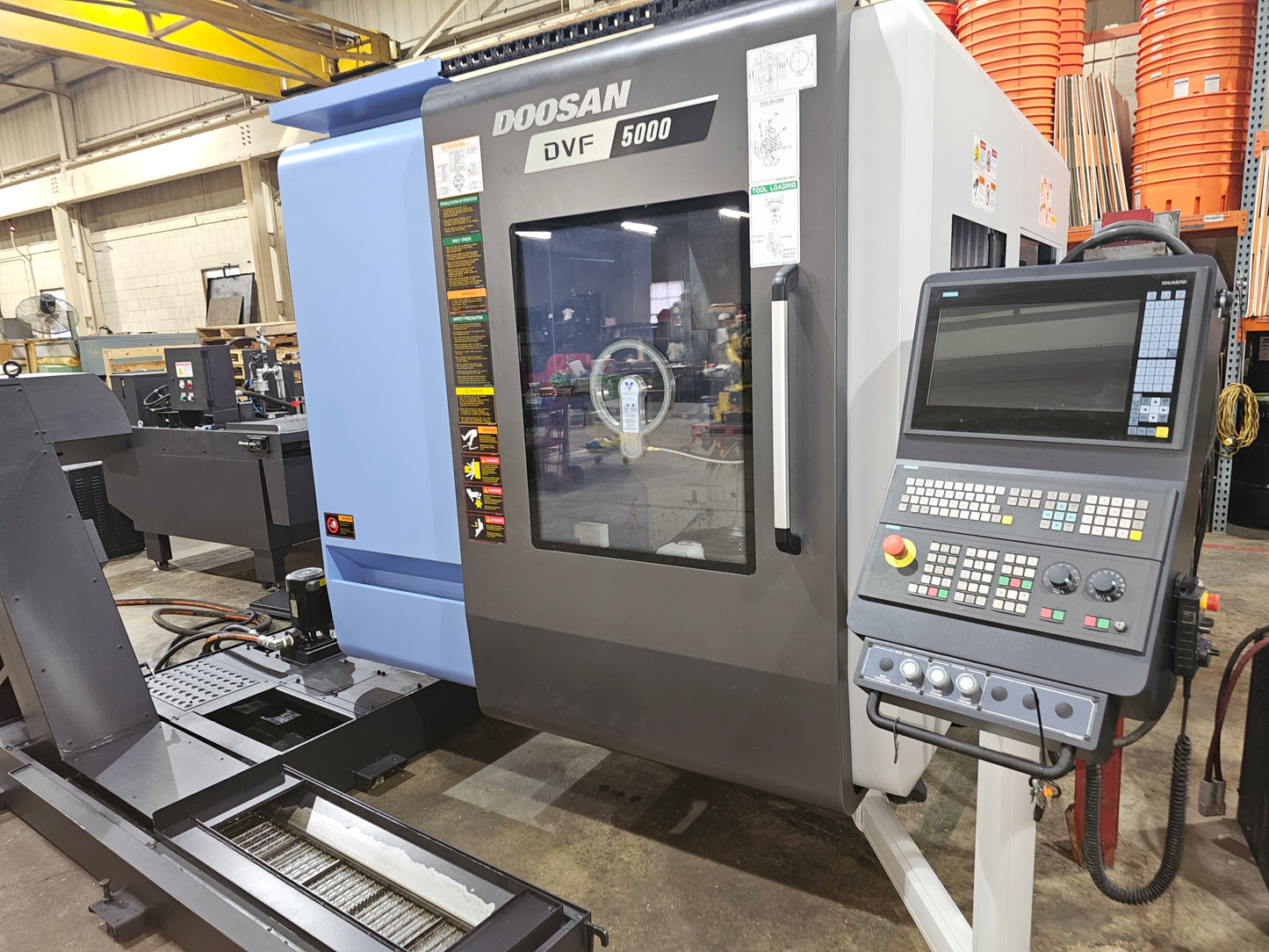

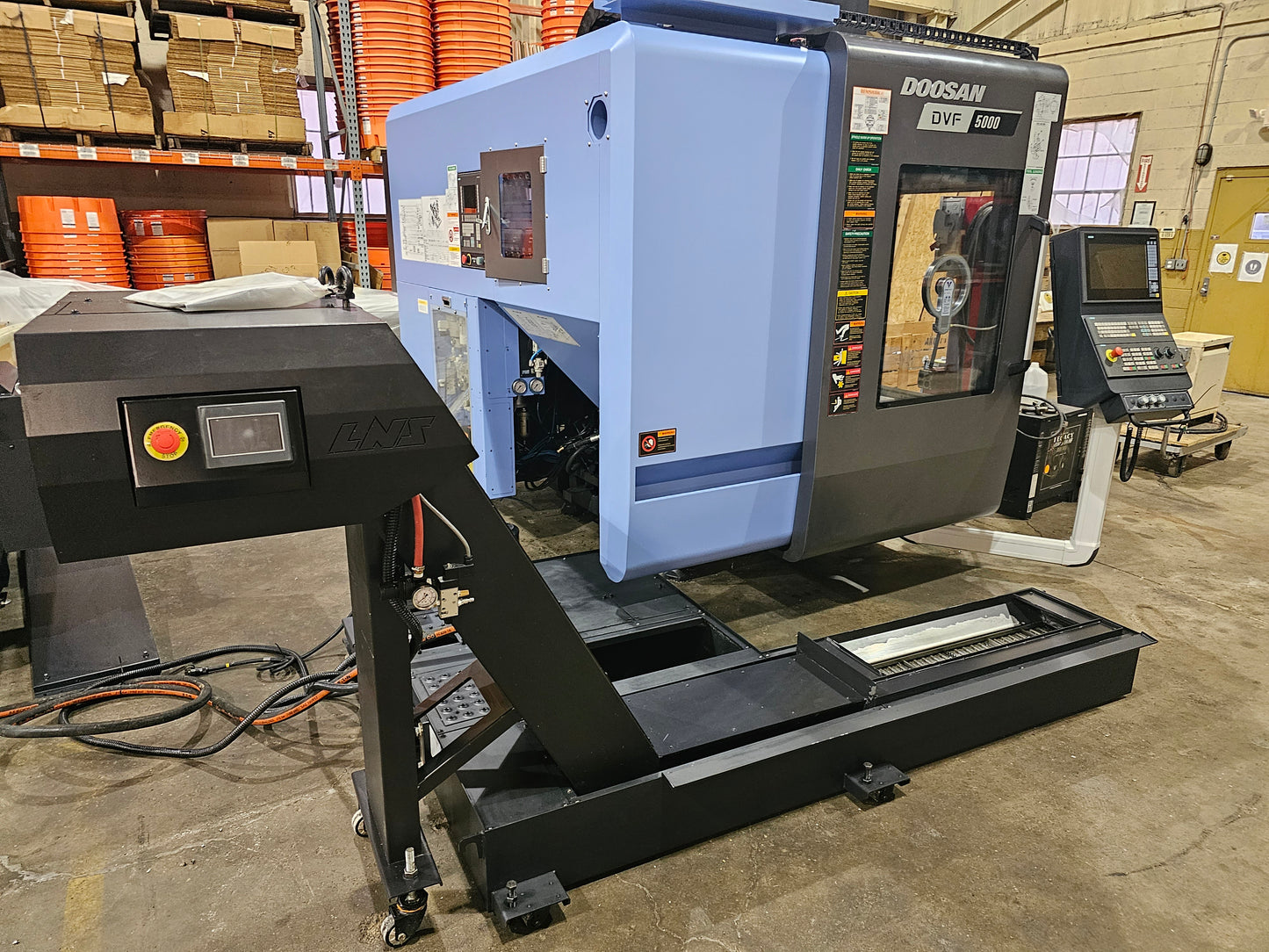

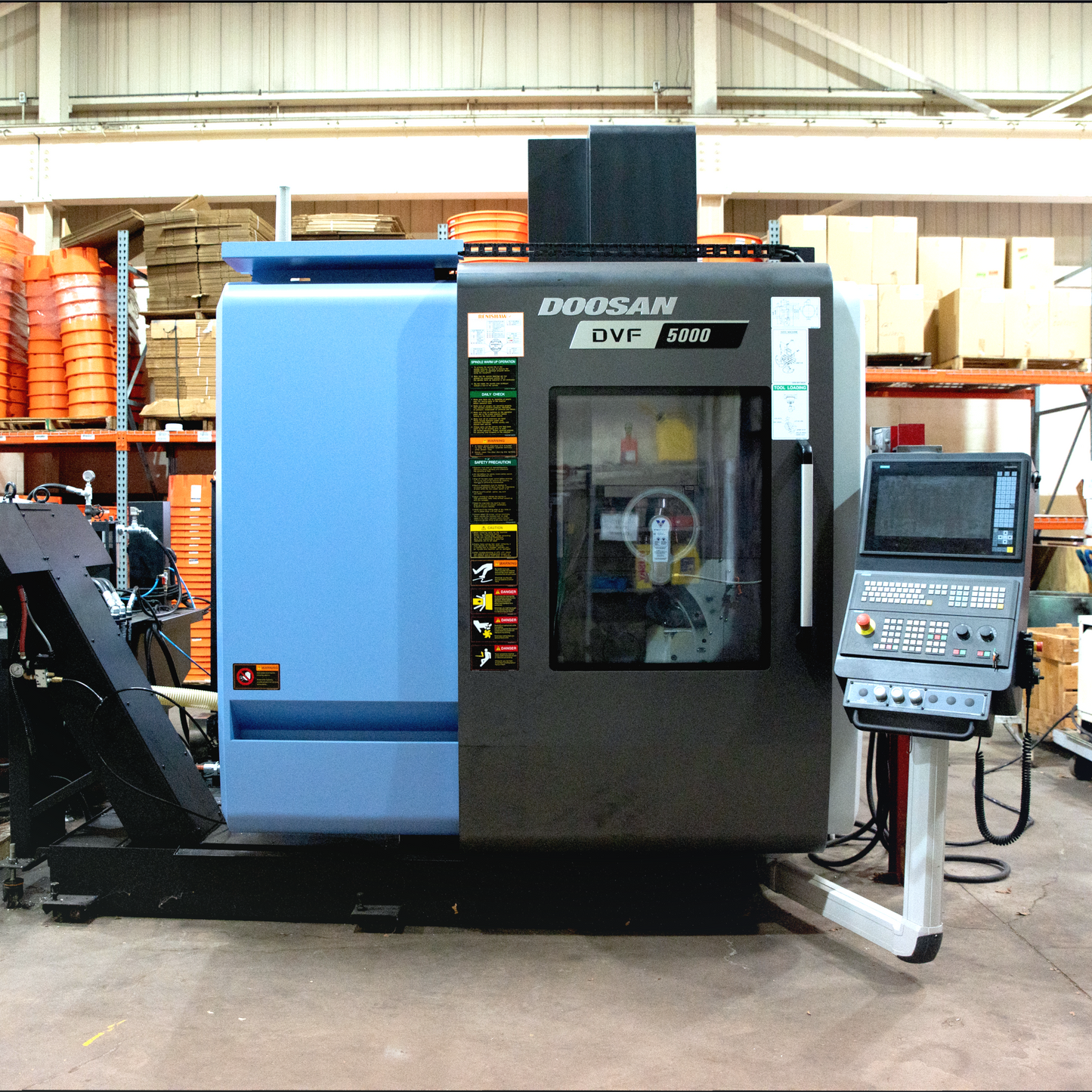

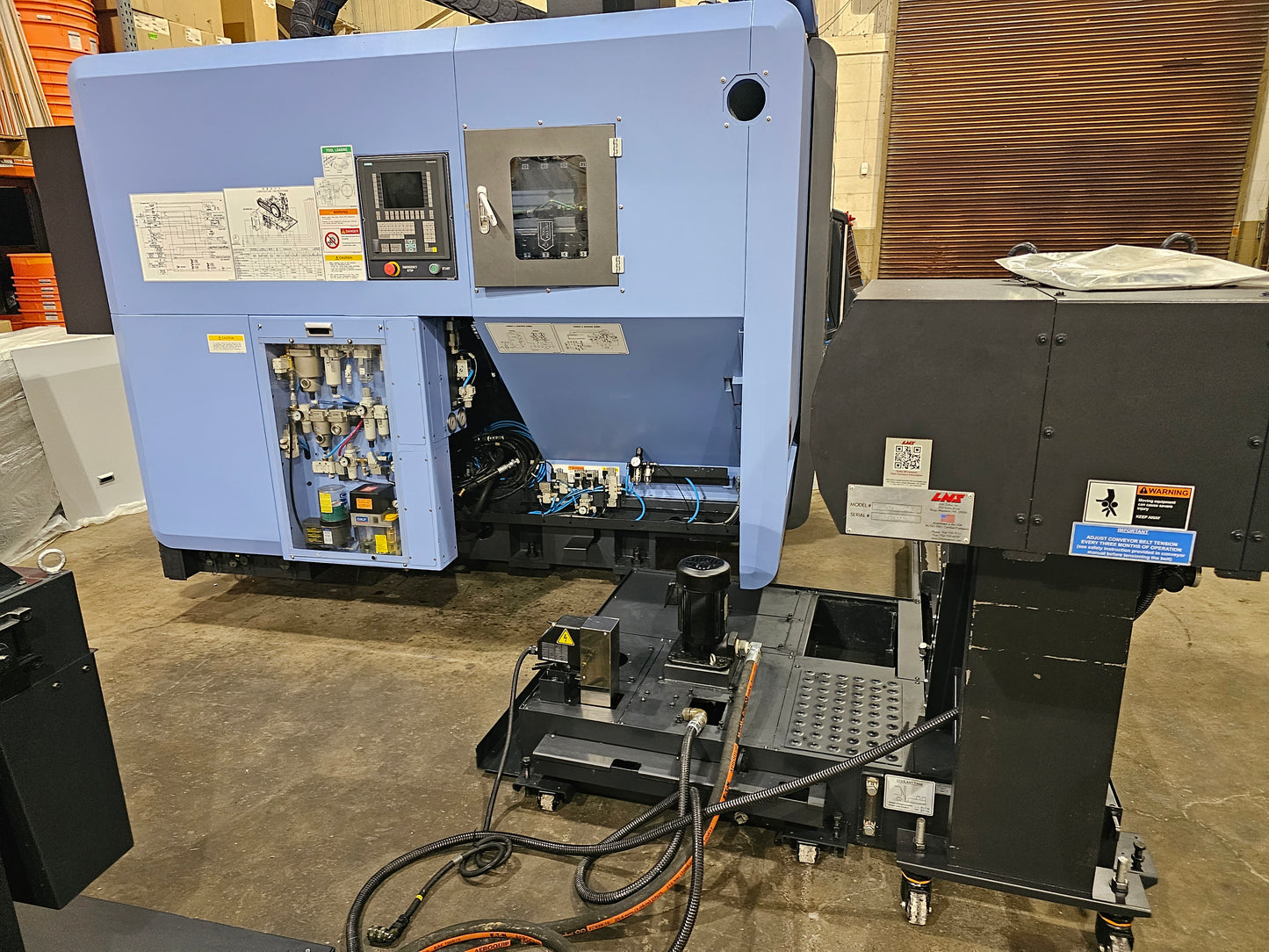

2020 - Doosan DVF 5000 - 5th Axis Vertical Machining Center

Travels:
Travel Distance X-axis: 625 mm (24.6 in.)
Travel Distance Y-axis: 450 mm (17.7 in.)
Travel Distance Z-axis: 400 mm (15.7 in.)
Travel Distance B-axis: +110°, -30°
Travel Distance C-axis: 360°
Rapid Traverse X-axis: 40 m/min (1575 in/min)
Rapid Traverse Y-axis: 40 m/min (1575 in/min)
Rapid Traverse Z-axis: 40 m/min (1575 in/min)
Rapid Traverse B-axis: 20 rpm
Rapid Traverse C-axis: 20 rpm

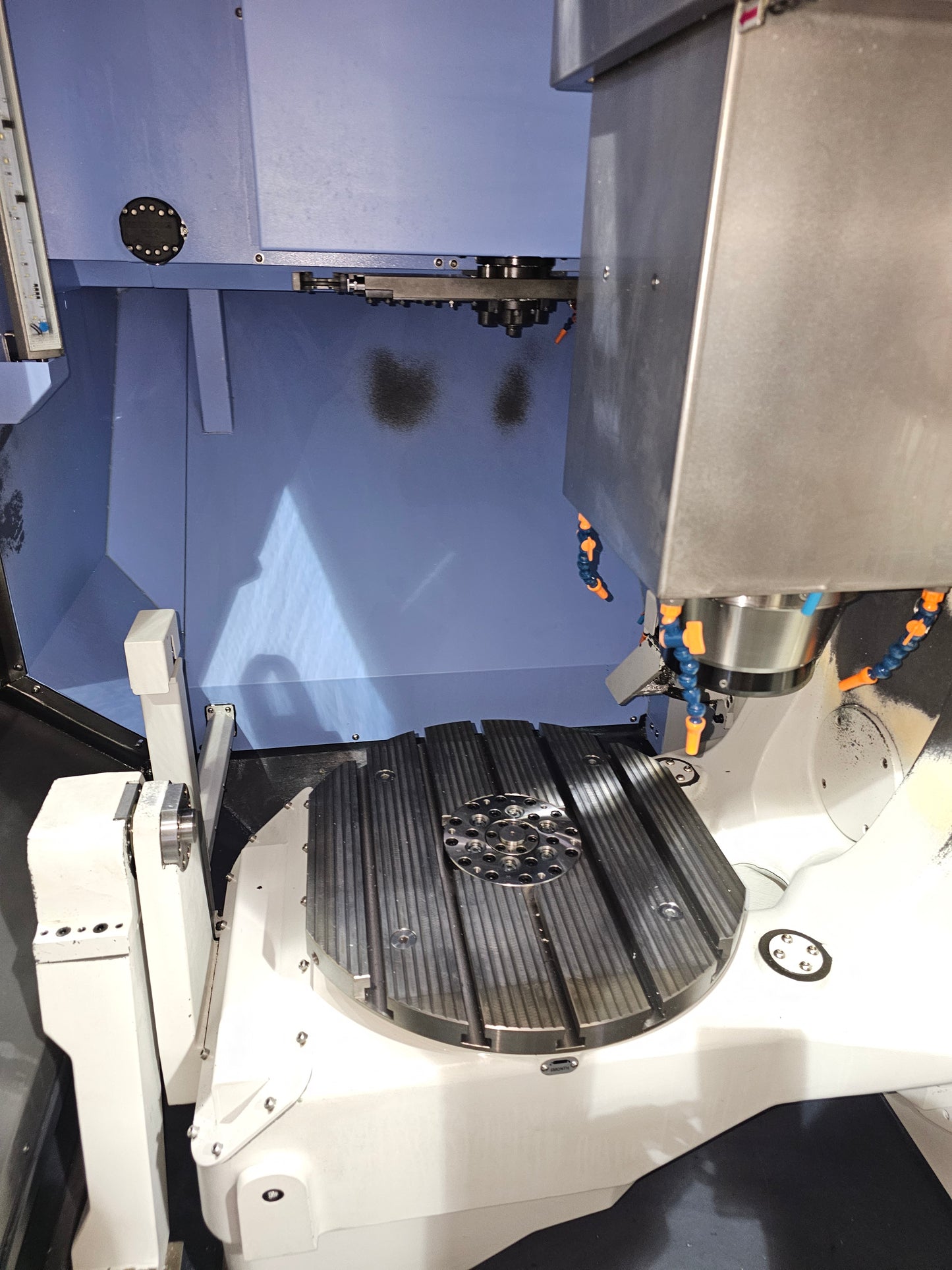

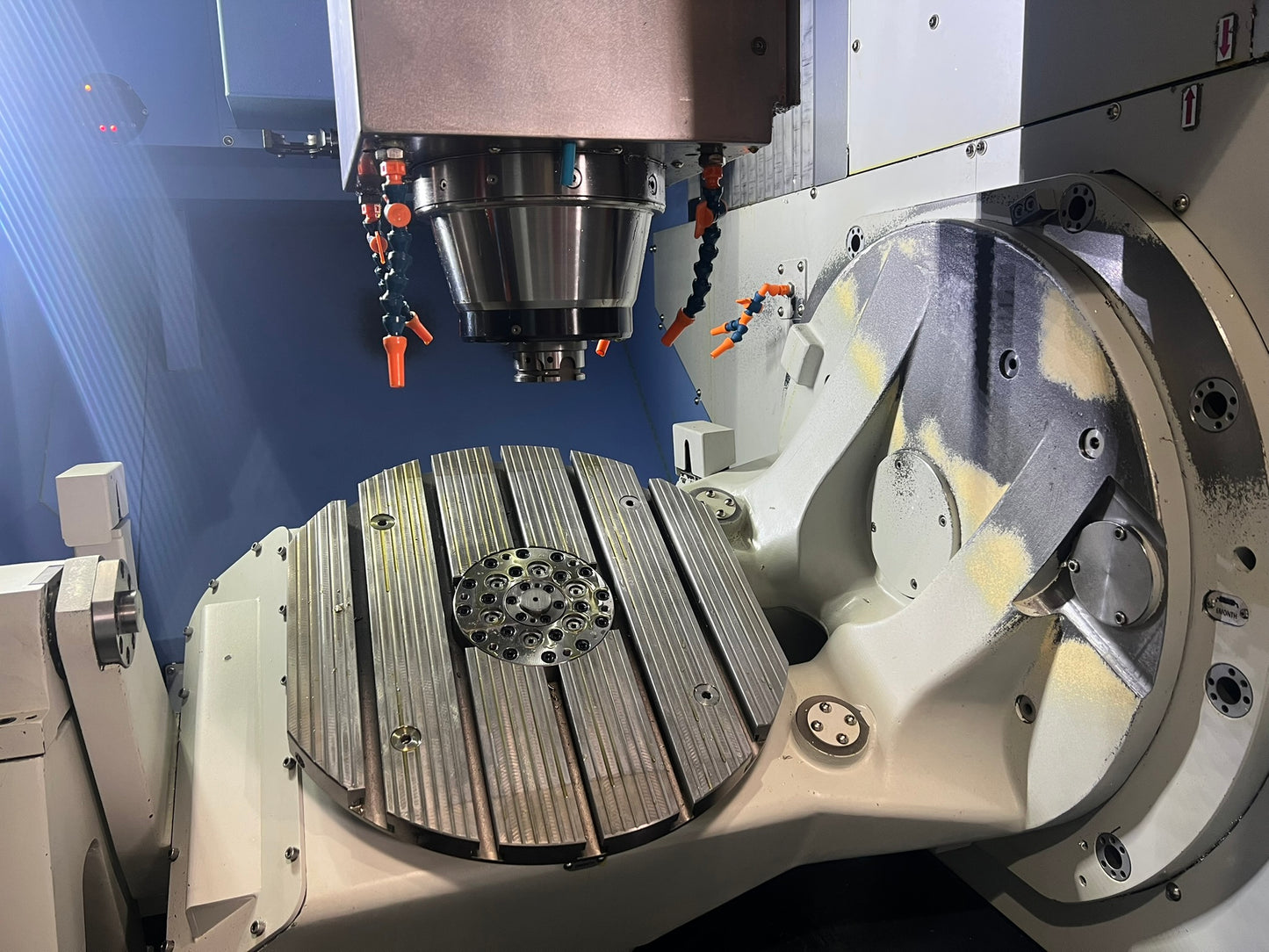

Rotary Table:
Table Size: ⌀500 mm (19.7 in.)
Max Part Diameter: ⌀550 mm (21.7 in.)
Max Part Height: 450 mm (17.7 in.)
Max Load: 400 kg (882 lbs.)

Machine Size:
Length: 2,900 mm (114 in.)
Height: 2,890 mm (114 in.)
Width: 2,205 mm (87 in.)
Weight: 7,500 kg (16,534 lbs)
